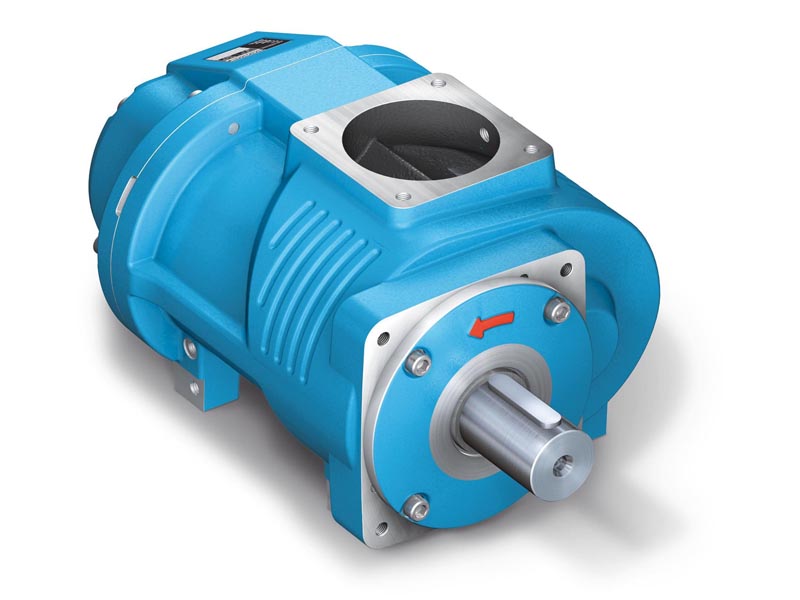

Reliable and versatile – ROTORCOMP® Air Ends
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.
ADVANTAGES OF OUR EVO® TECHNOLOGY
- New ROLLING PROFILE® – ultimate efficency with redused noice
- Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®
- Wide operating pressure range from 5 to 15 barg
- High quality manufacturing and assembling – "Made in Germany"
- Quality assurance - bench test of every air end before leaving the factory
- Easy appliaction selection with our new ROTORCOMP® SIZING AIR software
- Highest flexibility for your package design
EVO® Range
| Type | Recommended motor power min. – max. | Max. flow rate at 7 barg / 100 psig | ||
|---|---|---|---|---|
| kW | hp | m³min | cfm | |
| EVO2 | 3 – 11 | 5 – 15 | 1.6 | 60 |
| EVO3 | 5.5 – 18.5 | 10 – 25 | 2.8 | 100 |
| EVO6 | 15 – 37 | 20 – 50 | 5.5 | 200 |
| EVO9 | 22 – 55 | 30 – 75 | 8.4 | 300 |
| EVO15 | 45 – 90 | 60 – 120 | 14.2 | 500 |
| EVO28 | 75 – 160 | 100 – 215 | 26.1 | 593 |
| EVO42 | 132 - 250 | 175 - 335 | 33.3 | 1,176 |
| EVO76 | 160 - 540 | 214 - 725 | 76 | 2,678 |
