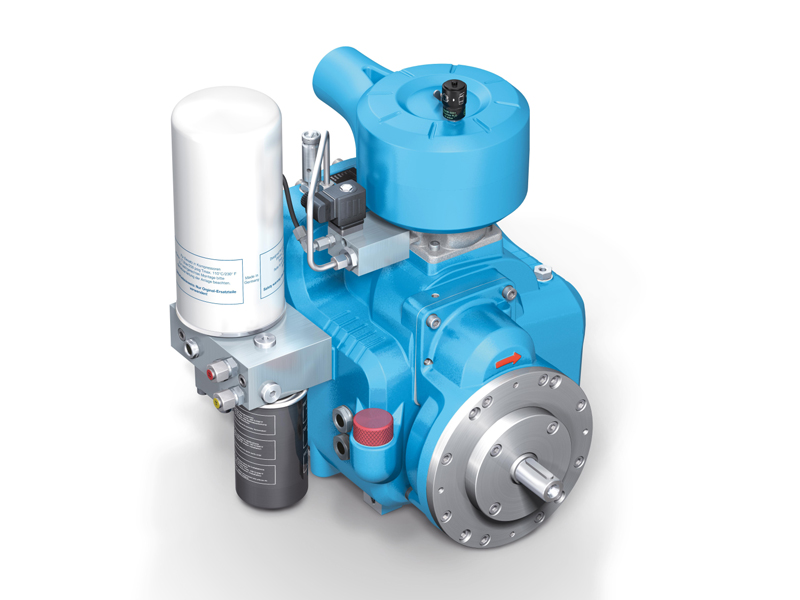

EVO®-NK-G SCREW AIR COMPACT UNITS WITH GEAR DRIVE
For a number of applications the use of a gear driven air end is the best choice. We provide a complete range of robust, flexible and highly efficient built-in gear boxes for our oil injected air ends starting from EVO3-NK-G.
EVO®-NK-G Range
| Type | Recommended motor power min. – max. | Max. flow rate at 7 barg / 100 psig | Max. flow rate at 7 barg / 100 psig | ||
|---|---|---|---|---|---|
| kW | hp | m³/min | cfm | barg | |
| EVO3-NK-G | 7.5 – 18.5 | 10 – 25 | 2.8 | 100 | 5 – 15 |
| EVO6-NK-G | 15 – 37 | 10 – 25 | 5.5 | 200 | 5 – 15 |
| EVO9-NK-G | 22 – 55 | 30 – 75 | 8.4 | 300 | 5 – 15 |
| NK200-G | 45 – 75 | 60 – 100 | 11.5 | 400 | 5 – 15 |
